Universal Tensile Testing Machine (0-20KN)
The YY-C003 Universal Tensile Testing Machine (0-20KN) is a precision instrument compliant with ISO 7500 & ASTM D412 standards, designed for comprehensive material testing across multiple industries.
Standards Compliance
GB16491-2008, HGT 3844-2008, QBT 11130-1991, GB 13022-1991, HGT 3849-2008, GB 6349-1986, GB/T 1040.2-2006 2411, ISO 4587, ISO/TS 11405, ISO 527, ASTM E4, BS 1610, DIN 52121, ISO 7500, EN 10002, ASTM D628, ASTM D638, ASTM D412
Applications
Testing physical properties of tape, automotive components, ceramics, composite materials, construction materials, food and medical equipment, metals, paper, packaging, rubber, textiles, wood, communication equipment, and various special-shaped materials.
Testing Capabilities
With appropriate fixtures, this machine performs tension, compression, holding, pressure retention, bending, tearing, peeling, adhesion, and shearing tests. Ideal for factories, technical supervision departments, inspection institutions, research institutes, and universities.
Key Features
- Fully computerized operation system for simplified testing procedures

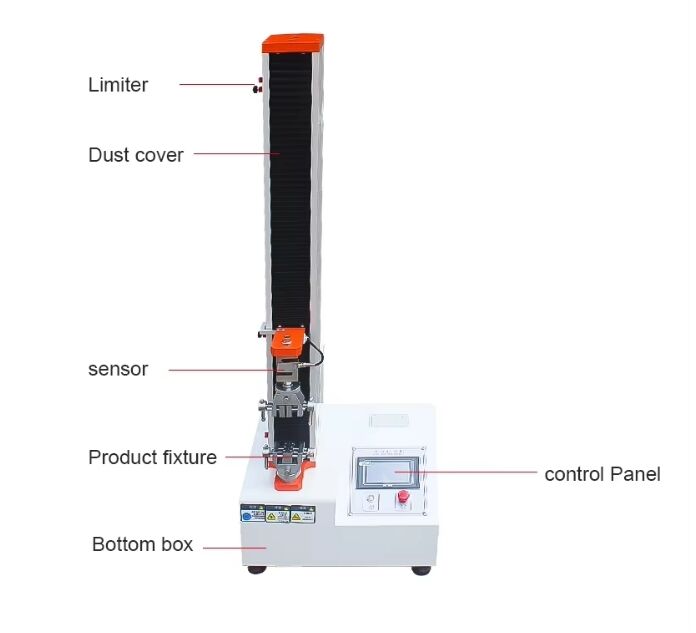

- Integrated panel and aluminum profile plate structure with high precision and low resistance
- Seamless precision ball screws and guide columns for enhanced load efficiency
- Advanced servo motor drive system with stable operation and accurate speed control
- QCTech testing software for complete parameter setting, data collection, and processing
- Comprehensive testing capabilities including tension, compression, bending, shearing, tearing, and peeling
Technical Specifications
Software Parameters
- Operating system language: English
- Force units (N, KN, Kgf, Lbf) and length units (mm, cm, in) freely convertible
Control Modes
- Computer software configures control methods for speed, load fracture, and running time

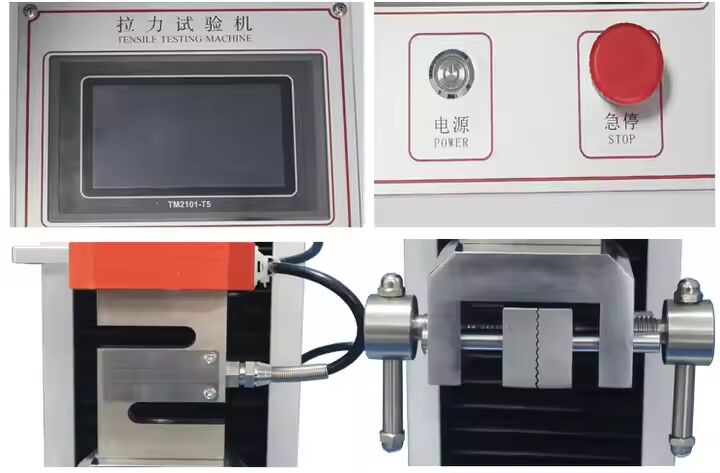

- Dedicated manual operation box for calibration and positioning
- Automatic detection of material fracture and breakage with automatic stop function
Curve Types
- Load-displacement, Load-time, Displacement-time
- Stress-strain, Strain-time, Stress-time
- Customizable horizontal and vertical coordinates
Available Test Data
Maximum strength, minimum strength, fracture value, upper/lower yield strength, tensile strength, compressive strength, modulus of elasticity, elongation, maximum value, minimum value, average value (selectable before ordering)
Safety Features
- Multiple protections: overload, overcurrent, overvoltage, undervoltage, overspeed, stroke limit
- Data results follow standard report format specifications
Primarily used for testing mechanical properties of metals (tension, compression, bending) with automatic calculation of tensile strength, yield strength, elongation, constant elongation stress, constant stress elongation, and modulus of elasticity according to GB, JIS, ASTM, and DIN standards.
