Name: Induction Heating Welding Machines Induction Heating Machine
Brand: DONGGUAN YUYANG INSTRUMENT CO., LTD
SKU: YY-40AB
Price: 2000 USD
Availability: InStock

المنزل > المنتجات > مجموعة الاختبارات الكهربائية >

Induction Heating Welding Machines Induction Heating Machine

induction heating welding machine

electrical test set with induction heating

welding machine with induction heating

مكان المنشأ:

الصين

اسم العلامة التجارية:

YUYANG

إصدار الشهادات:

رقم الموديل:

YY-40AB

اتصل بنا

اطلب اقتباس

تفاصيل المنتج

ماكس متقلبة القوة:

40 كيلو واط

قوة العمل:

340 فولت-430 فولت

الحد الأقصى لتيار الإدخال:

41 أ

طاقة الإخراج:

40 كيلو واط

تردد متقلب:

30-80 كيلو هرتز

معدل تدفق مياه التبريد:

0.08-0.16MPA 7.6L/MIN

نقطة حماية درجة حرارة الماء:

40 ج

حجم المنتج:

620x250x530 ملم

الوزن الصافي:

34.5 كجم

إبراز:

induction heating welding machine

electrical test set with induction heating

welding machine with induction heating

شروط الدفع والشحن

الحد الأدنى لكمية

1 مجموعة

الأسعار

$2000

تفاصيل التغليف

صندوق من الخشب الرقائقي

وقت التسليم

5-10 أيام عمل

شروط الدفع

/ تي تي، خطاب الاعتماد، ويسترن يونيون

القدرة على العرض

200 مجموعات شهريا

منتجات ذات صلة

فيديو

High Frequency Electromagnetic Induction Heating Generator for Steel Bar in Metal & Metallurgy Machinery

احصل على أفضل سعر

فيديو

Mini Automatic Plastic Glass Jar Sealing Machine Handheld Aluminum Foil Heat Hot Induction Packaging with Cap Lid 220v

احصل على أفضل سعر

فيديو

15KW High Frequency Induction Heating Machine New Metal Copper Pipe Wire Welding Manufacturing Plants Construction Motor Engine

احصل على أفضل سعر

فيديو

20-100mm Aluminum Foil Lid Plastic Jar Sealing Heat Machine Handheld Induction Bottle Foil Sealer Metal Metallurgy Machinery

احصل على أفضل سعر

اتصل بنا

8613265296009

sales13@yuyangtest.com

86-769-26622869

اتصل الآن

وصف المنتج

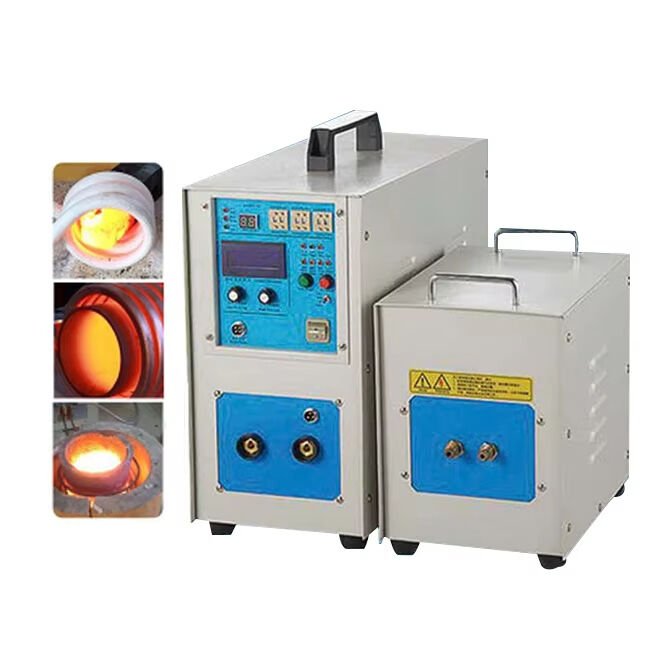

Induction Heating Welding Machines

Advanced induction heating equipment designed for efficient metal processing with superior energy savings and environmental performance.

Key Characteristics

IGBT inverting device with automatic frequency tracking
High-frequency operation with 70-80% energy savings compared to traditional heating methods
Secure voltage operation for enhanced safety
Manual and automatic regulation with comprehensive protection systems
Environmentally friendly operation with no open flame, noise, or pollution
Versatile applications including brazing, welding, forging, and heat treatment

Advanced Features

Utilizes state-of-the-art electrical components and innovative techniques for rapid, localized metal heating. Capable of penetrating non-metallic materials to heat metals directly without physical contact, providing safe, economical, and pollution-free technical solutions.

Product Advantages

Portable design: 80% space savings and 75% weight reduction compared to traditional transformers
Advanced amorphous magnetic core technology for superior heating of complex metal shapes
High efficiency with rapid 8-second heating cycles and stable magnetic field output
Monolithic shell design resistant to weak acids and alkalis
Ideal for air conditioning, refrigeration, and complex welding applications

Technical Specifications

Model	YY-40AB (Three Phase)
Work Power	340V-430V
Maximum Input Current	41A
Output Power	40KW
Fluctuating Frequency	30-80KHZ
Cooling Water Flow	0.08-0.16Mpa 7.6L/Min
Overheat Protection	40°C
Main Unit Dimensions	620×250×530mm
Transformer Dimensions	480×260×410mm
Main Unit Net Weight	34.5kg
Transformer Net Weight	31.5kg

Applications

Metal brazing: copper, brass, tungsten steel, stainless steel, iron, aluminum
Glasses welding, fishing tool welding, hardware appliances welding
Carbide saw and blade welding, saw-tooth welding
Jewelry and watch manufacturing
Electronic industry: motor rotor hot-cooperation, electrode soldering
Medical implants, bulb electrode manufacturing
Sports equipment: golf heads, band accessories
Communication equipment: copper coaxial cable connector soldering
